Media Players

It's the biggest thing to happen to Signage Veni in the smallest possible way

Android and Windows based Signage Veni Players

Capabilities Chart

mediaTOUCH
mediaDROID-X Pro
mediaBOX-200

Performance

pick the hardware that’s right for you

Processor

key component for smooth playback

Quad Core ARM® 1.8GHz Cortex™-A17
Quad Core ARM® Hex core 1.8Ghz
Intel™ Core i3 Dual Core

Memory

operating memory

2GB DDR3
2GB DDR4
2GB DDR3

Operating system

pre-installed OS - PNP

Android 4.4
Android 9.0
Windows 10e

Total screens

* display same content in all screens

** display different content in each screen

2*
1
2**

Storage / Cache

Offline playback local storage

32GB caching
16GB caching
128GB caching

Physical size

small form factor

248x174x10.8mm
117x117x18.5mm
116x112x20mm

Display orientation

support vertical & horizontal modes

Both
landscape and portrait
Both
landscape and portrait
Both
landscape and portrait

Network

Internet connectivity

Ethernet / WIFI
Ethernet sold separately
Ethernet / WIFI
100/1G / 802.11 b, g, n, ac
Ethernet / WIFI
100/1G / 802.11 b, g, n

Screen resolution

via single or multi HDMI

1920x1080 x 1
always 1080p
1920x1080 x 1
always 1080p
1920x1080 x 2
adjustable resolution

Video quality playback

frame per second capabilities

HD
1080p / 60fps
HD
1080p / 60fps
HD
1080p / 60fps

Total USB Ports

external and internal

3
supports USB hub
4
supports USB hub
3
supports USB hub

Power input

power requirements

120-230V
included power supply
120-230V
included power supply
120-230V
included power supply

SignageController

watchdog process / live monitor

Plug and Play

register account and play

Integrated Audio

via HDMI or external Analog

Full featured player

support all campaign components

Web managed

remote control from SignageStudio

Live TV

connect TV / Satellite / Cable box




Price

$245.00
$225.00
$595.00

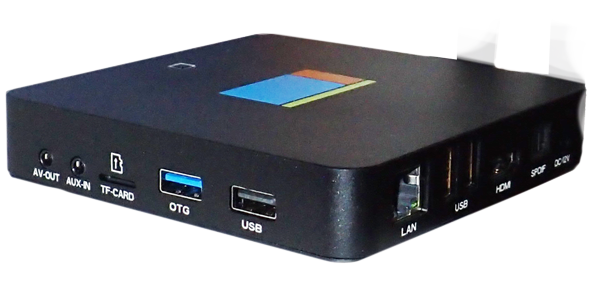

mediaDROID-X Pro - ARM® Hex core with Android 9.0 Signage Veni Player

- Supports both vertical and horizontal modes
- Comes with both Ethernet and WiFi

The mediaDROID-X Pro combines all the best hardware features using the latest Amlogic next gen processor and powered by our own specially baked Android 9.0 - this dedicated player was designed to play all day and all night and has been battle tested to deliver Signage Veni campaigns with high reliability and superb performance. Its metal housing in combination with efficient heatsink provides stable processing for full workload of CPU and GPU.

It is powered by the latest version of our SignagePlayer App built in Signage Watchdog, all developed by MediaSignage to deliver uninterrupted and continuous playback so you get all the same set of features with the highest performance compared to any low powered, plug-N-play, stateless, Android based device. The device is about the size of you palm and is ideal for small space installations. All you need to do is to just plug the enclosed HDMI cable to any HDMI screen, connect to either your WiFi or Ethernet to connect to the internet and power it on.

The device is powered with the supplied 120/240V power supply. The mediaDROID-X Pro can locally cache all your resources on its internal 16GB EMMC drive, so it can operate even when the connection to the internet is lost with no interruption to your audience. We are proud of this device and we know you will be awed with its performance!

  • Hexa 6 core design (4+2) Quad Core ARM® Cortex-A73 (1.7Ghz) + Dual Core ARM® Cortex-A53 (1.8Ghz)
  • Loaded with our special baked Android OS and built in Watchdog (i.e.: SignageController)
  • Supports both vertical and horizontal screen modes
  • Full HD 1080P 60FPS Video
  • ARM Mali TM-G52 MP6(6ppc)
  • RAM DDR4 2GB
  • WiFi 2.4G+5G; 802.11 a/b/g/n/ac
  • Ethernet 10/100/1000MB Port
  • 3 x USB 2.0 and 1 x USB 3.0 ports
  • Plug & play - Connect to any HDMI port, and begin the presentation playback
  • Single HDMI 2.1 and 2.0 Output (cable included)
  • Local offline caching storage 16GB
  • Includes Power supply 120-230V
  • Dimensions 117x 117 x 18.5mm
  • Net Weight 300g
  • TouchPad for easy initial setup (sold separately)

mediaBOX-200 10th Gen player Intel™ i3 2.4GHz Dual core 4GB Memory

- in stock, normally ships within 1-2 days

No more compromising between performance, profile, and price. The mediaBOX-200 is a tiny 117 x 112 x 38mm computing device with the power of the 10th generation Intel Core i3 Desktop processor. Loaded with a special baked Windows 10 Embedded OS that’s built by MediaSignage engineers to provide unparalleled reliability. The Windows 10 Embedded OS includes special enhancements such as blocking OS pop-ups, disable OS updates, removed unneeded services, registry tweaks and more; all to ensure the best performing dedicated Signage Veni Player. The mediaBOX-200 lower power consumption still delivers highly demanding presentations even when powering two high definition 1920x1080 screens.

Designed specifically for Signage Veni and Kiosk applications, the mediaBOX-200 is packed with hardware features such as BIOS vault technology, fast boot technology, Visual BIOS technology and Anti-Theft Technology. With the reliability of an ultra fast M.2 2280 drive, you no longer have to rely on a physical spinning disk, thus guaranteeing the longevity of the player. And when it comes to price, the mediaBOX-200 is priced as low as it can go. The price includes the Microsoft Windows 10 license ($125.00 value) and the M.2 2280 drive so you are truly getting the most bang for your buck.

  • Pre-loaded Windows 10 Embedded compiled by MediaSignage
  • Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz)
  • 2.1GHz Base, 4.1GHz Turbo, Dual Core/ Four Threads
  • Anti theft mounting option
  • VESA mount to hang on wall or behind screen (included)
  • 120GB M.2 2280 drive with OS loaded (included)
  • Internal memory DDR4 4GB memory (included)
  • Power supply and cord for 120-240V (included)
  • HDMI 2.0a; USB-C (DP1.2)
  • Intel® UHD Graphics
  • 4MB cache, 25W TDP
  • WIFI6 and Ethernet LAN connections
  • Compact size for a very small footprint
  • Low power consumption
  • M.2 slot with PCIe X4 lanes
  • 2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C)
  • Audio controller Intel HD Audio
  • Dimensions: 117 x 112 x 38mm

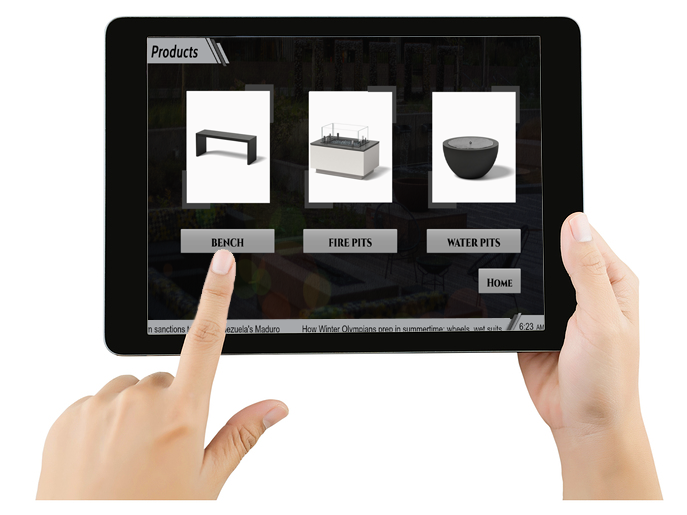

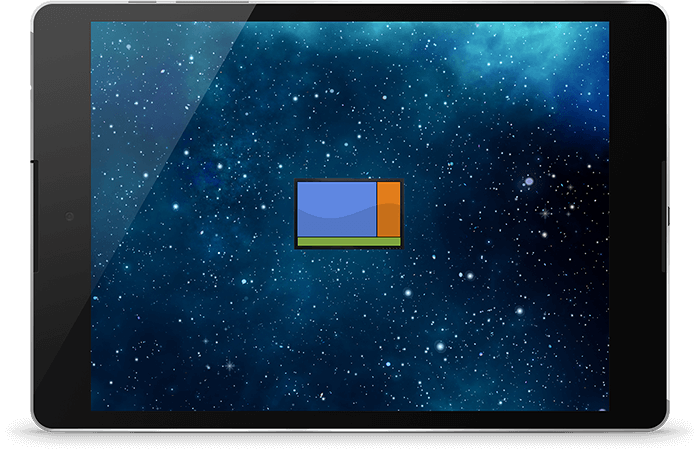

mediaTOUCH tablet 10.1" for signage and touch (plug & play)


The mediaTOUCH tablet was designed to support both standard non interactive Signage Veni as well as a kiosk mode for an interactive digital experience. For Signage Veni, its easy to spread out mediaTOUCH tablets around your organization and allow for easy installation and quick setup.

Order tablet only or combo pack which includes one mediaTOUCH tablet and one metal Kiosk mount for interactive Signage Veni

  • Display Size 10.1" 1920x1200 full viewing angle, full HD Ratio 16:10
  • CPU speed Quad-core 1.8GHz Rockchip 3288 Cortex A17
  • Signage local cache 32GB and 2GB of 2GB DDR
  • Signage based custom built on top of Android 4.4
  • G-Sensor,Gyro, compass, light sensor, camera 2M/8M, flashlight
  • Micro SD slot
  • HDMI output mini HDMI port x1
  • Earphone jacj, DC-IN jack 120V power supply to 5V 5.5A
  • Microphone, two Speaker, GPS, Bluetooth
  • Wifi 802.11b/g/n (Ethernet sold separately)
  • Battery 8800mAh *3.8V =33.44Wh
  • Weight 580g | 248*174*10.8 mm

mediaTV external USB capture device add-on for the mediaBOX

Includes Composite and S-Video cable


This mediaTV capture device supports S-Video, composite and TV antenna Audio / Video input. Designed to work specifically with the mediaBOX-200 V3.

Learn more about the mediaTV here

mediaFRAME | convert ANY screen to a Kiosk touch screen

works with any screen, any size, vertical or horizontal mode

- install in under 5 minutes | plug & play

it's like magic, in just under 5 minutes, simply place the mediaFRAME over your existing screen, connect the USB cable to your SignagePlayer and get a kiosk that works flawlessly within 2 pixels of accuracy.
If you are looking for a touch solution for your business, the mediaFRAME is the best way to get a super size tablet at a fraction of the cost.
